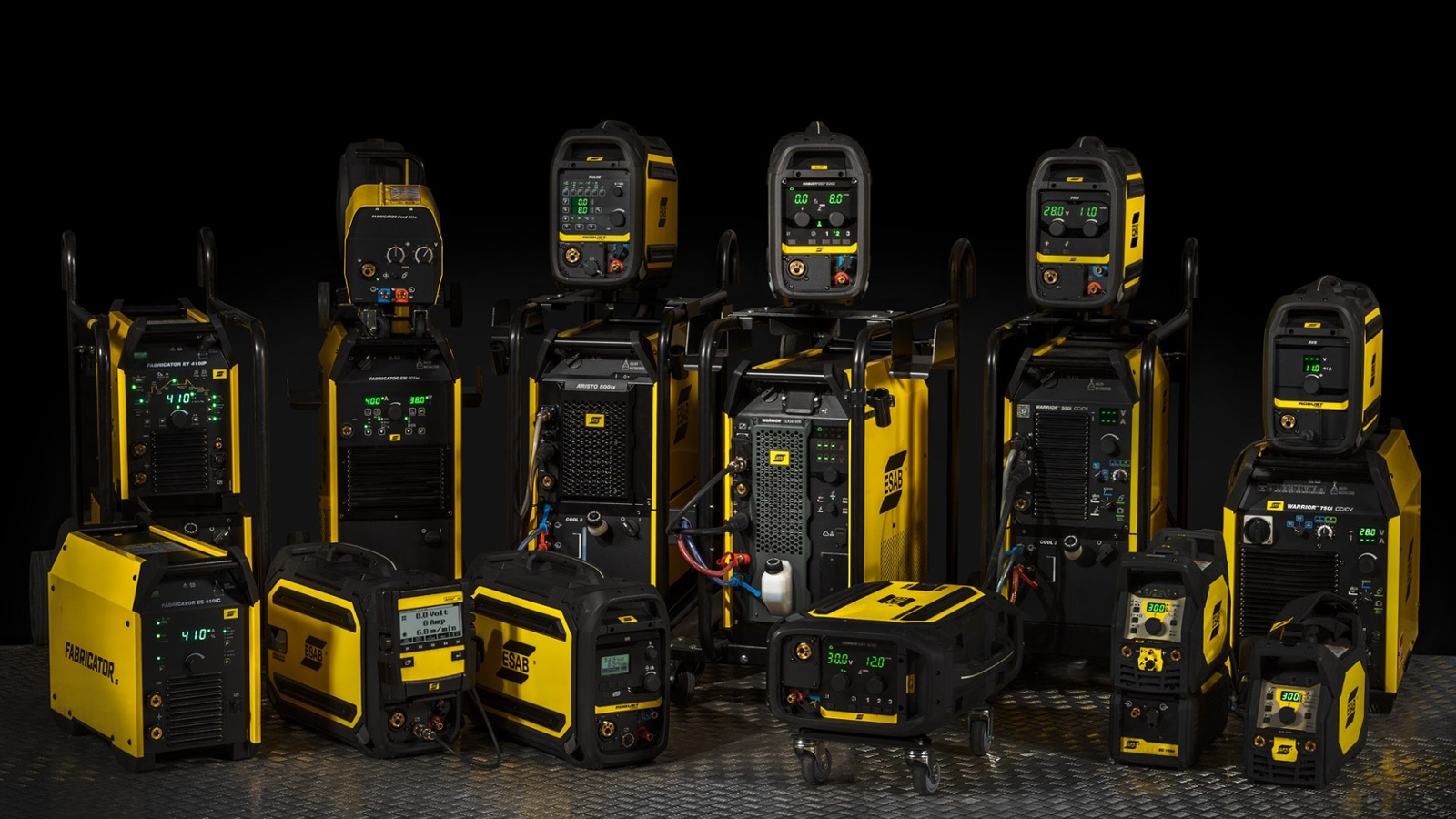

All About Inverter Welding Machines

The Revolution Brought by the Inverter Welding Machines in the Industry

The welding industry’s innovation has led to the development of advanced technologies, products, and equipment that offer enhanced productivity, portability, versatility, performance, and efficiency. One such exemplary innovation is the inverter welding machine. Inverter machines have revolutionized the industry by providing plenty of advanced benefits and capabilities over conventional welding machines, beat transformers, rectifiers, thyristors, etc. Their cutting-edge features and functionalities help improve welding processes and deliver outstanding results. And that made them gain immense popularity among entry-level welders and skilled professionals worldwide.

What is an Inverter Welding Machine?

An inverter welding machine is a technologically advanced device that utilizes modern electronic components for welding. It converts the incoming AC power supply into a stable DC output using semiconductor devices. This transformation allows for more precise control of the welding arc, resulting in greater stability and efficiency during welding.

Compatibility of Inverter Welding Machines with Different Input Power Sources

Inverter Machines are designed to operate efficiently with various input power sources, including generators. This capability is due to the power source's ability to handle a broad spectrum of input voltages. Inverter welding machines with the PFC (Power factor control) at the input side help to maintain a steady output even amidst input fluctuations, consume less power, correct power factors, and incorporate other related functionalities.

Features and Benefits of Inverter Welding Machines

Delving further into the features and benefits offered, let’s learn how inverter machines continue to transform the welding landscape and drive innovation in the industry.

1.    Improved Welding Efficiency

Inverter machines are designed to maximise welding efficiency through their advanced technology. The machines use high-frequency inverters that allow accurate control over the welding current, following enhanced arc stability and control. The fast response time of the welding machines enables reduced spatter, good arc start, and better welding speed. Also, they have different welding modes and adjustable parameters, helping welders optimise settings depending on the specific welding criteria. Such flexibility, versatility and control significantly increase the welding productivity and efficiency, saving time, cost and resources in several welding applications.

2.    Reduced Power Consumption

Inverter welding machines are known for their superior energy efficiency compared to conventional welding equipment. These machines use high-frequency inverters to convert DC power into high-frequency AC, which is then transformed to achieve the desired welding result. This efficient conversion process reduces power losses and energy consumption. These machines can deliver the required welding output by utilizing less input power and operating at moderate voltage with higher frequencies. The energy-saving feature lowers operating costs and promotes a more environmentally sustainable and eco-friendly welding practice.

3.    Compact Design and Portability

Inverter welding machines are compact and lightweight, making them easy to transport and handle, unlike traditional heavy transformers and rectifiers. Their portability allows welders to quickly move them to various job sites, including hard-to-reach areas. Additionally, their space-efficient design saves workspace and storage, making them ideal for locations with limited space.

4.    Enhanced Weld Quality

Inverter welding machines are known to deliver exceptional welding quality, all thanks to their advanced technology and accurate control over the welding processes. Their smooth, stable arc lets uniform and consistent welds, lessening defects including porosity, spatter, or irregular bead profiles. Adjusting welding settings accurately allows welders to attain optimal fusion, penetration, and overall quality and weld appearance. These machines also offer superb control over heat input, lowering the risk of warping or distortion in the welded workpiece. With improved weld quality, the equipment ensures the strength, durability, and integrity of welded components and structures.

5.    Versatility

Inverter machines are highly versatile, capable of performing various welding processes in both CC & CV modes and accommodating a wide range of materials, from thin to thick plates. They can efficiently handle welding methods such as SMAW, GMAW, GTAW, and FCAW and can easily weld dissimilar materials, including stainless steel, carbon steel, aluminium, and other alloys. This versatility makes them ideal for various applications and industries. The adaptability of these machines broadens the possibilities for welders, enabling them to tackle different projects and meet the diverse demands of numerous welding applications.

How do Inverter Machines Work?

Inverter welding machines are innovative devices using advanced technology to provide accurate and efficient welding processes. Unlike the prior welding machines, which depend on rectifiers and transformers, the inverter machines use inverter technology to convert input AC power into stable DC power output. Interested in knowing the classification of how these machines work?

Power Conversion:

1.    AC power to DC power:

The power source initially transforms the incoming AC from the main power supply into DC. This conversion is achieved through a rectifier, which is a component that permits current to flow exclusively in one direction.

2.    DC power to High-Frequency AC power:

The DC power is subsequently transformed into high-frequency AC using high-speed switching devices like Insulated - Gate Bipolar Transistors (IGBTs) and Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs). This high-frequency AC is more readily adjustable to achieve the specific voltage and current requirements essential for welding applications.

3.    Transformation to Desired Welding Output:

The high-frequency AC is subsequently directed through a transformer, which modifies the voltage and current to meet the specific requirements of the welding process. This high frequency enables the utilization of a smaller and lighter transformer, thereby enhancing the compactness of inverter welding machines.

4.    AC power to DC power:

The AC output power from the transformer is converted into stable DC power with the help of a diode rectifier. This conversion process consists of two primary stages: rectification and the smoothing of the DC output.

5.    Control and Regulation:

Following the transformation, the current is regulated to maintain a stable and controlled welding arc. Inverter technology facilitates precise adjustments to welding parameters, providing welders better control over the process.

6.    Welding process:

The stabilized output is delivered to the welding torch or electrode holder, generating an electric arc for welding. This precise control over the arc results in high-quality welds with minimal spatter and better penetration.

Conclusion

Innovation in the fabrication world has undeniably taken the industry forward, and inverter welding machines are evolving as game changers in the sector. These high-end machines have transformed the welding scope with their minimised power consumption, improved welding quality and efficiency, portability, and versatility. Their remarkable features and impact on portability, power consumption, energy efficiency, weld quality and diversity have revolutionised the industry. As these machines continue to improve, evolve and serve, they make the way for even better advancements in welding technology, enabling welders and professionals to attain new levels of accuracy and productivity.
